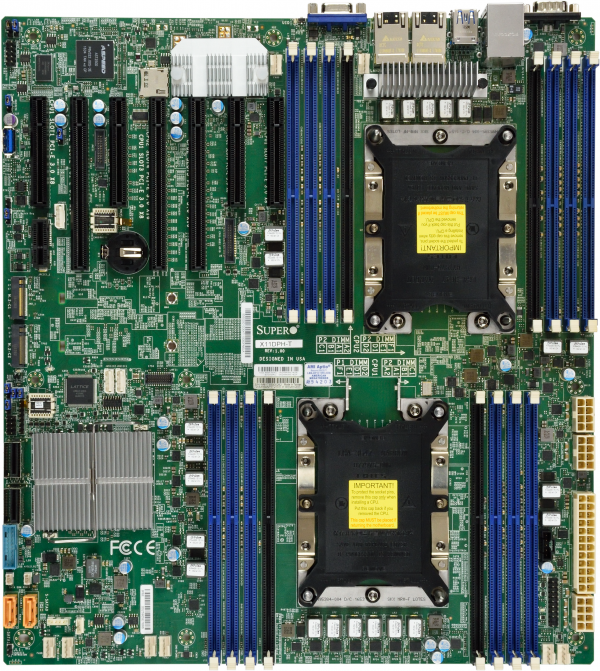

X11DPH-T

E-ATX

12" x 13" (30.48cm x 33.02cm)

2nd Gen Intel? Xeon? Scalable Processors and Intel? Xeon? Scalable Processors,

Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP

BIOS version 3.2 or above is required to support 2nd Gen Intel? Xeon? Scalable processors (codenamed Cascade Lake-R)

Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;

Up to 2TB Intel? Optane? DC Persistent Memory in memory mode (Cascade Lake only);

2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

RDIMM: 64GB

LRDIMM: 64GB

3DS LRDIMM: 128GB, 256GB

1.2V

Corrects single-bit errors

Detects double-bit errors (using ECC memory)

Intel? C622

Intel? C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

ASPEED AST2500

Dual LAN with 10GBase-T with Intel? X722 + X557

10 SATA3 (6Gbps) ports

2 RJ45 10GBase-T ports

7 USB 3.0 ports (4 rear + 2 headers + 1 Type A)

1 VGA port

1 COM Port (1 rear)

1 TPM Header

3 PCI-E 3.0 x16,

4 PCI-E 3.0 x8

M.2 Interface: 2 PCI-E 3.0 x4

Form Factor: 2242/2260/2280/22110

Key: M-Key (RAID 0,1 support)

AMI UEFI
