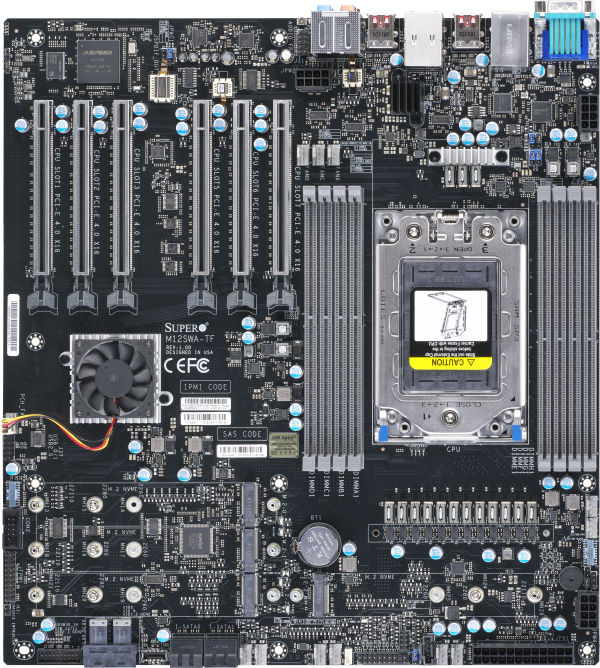

M12SWA-TF

E-ATX

12" x 13" (30.48cm x 33.02cm)

Single AMD Ryzen? Threadripper? PRO 3000WX Series Processor

Socket sWRX8/SP3

Supports CPU TDP up to 280W

Up to 64 Cores

8 DIMM slots

ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, LRDIMM and 3DS R-DIMM Memory

RDIMM up to 2TB, UDIMM up to 256GB

8-channel memory bus

ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, LRDIMM and 3DS R-DIMM Memory

DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Mhz

8GB, 16GB, 32GB, 64GB, 128GB, 256GB

1.2V

Corrects single-bit errors

Detects double-bit errors (using ECC memory)

AMD WRX80

AMD WRX80 controller for 4 SATA3 (6 Gbps)ports, Software RAID 0,1,5,10

10G LAN: Single LAN via Marvell AQC113C 10Gb controller

1GbE LAN: Single LAN via via Intel? i210AT controller (shared with IPMI)

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2600 BMC

ALC4050H + ALC1220 7.1 Channel HD Audio

ASPEED AST2600 BMC

VGA connector is dedicated for IPMI

4 SATA3 (6 Gbps) ports

1 RJ45 10GBase-T LAN port

1 RJ45 GbE LAN port (shared with IPMI)

1 USB 3.2 Gen2x2 port (Type C, 20Gbps)

5 USB 3.2 Gen2 ports (4 Type A, 1 front Intel Type C header, 10Gbps)

5 USB 3.2 Gen1 ports (3 Type A, 1 via header)

2 USB 2.0 via header

1 VGA port (dedicated for IPMI)

1 COM port (rear)

1 TPM 2.0 header

Interface: 4 PCI-E 4.0 x4

Form factor: 2280, 22110

Key: M-key

Software RAID 0,1,5,10 support

Interface: 2 U.2 Sockets

Software RAID 0,1 support

SC743AC-1K26B-SQ

SC745BAC-R1K23B

SC747BTQ-R2K04B

SCGS7A-2000B
