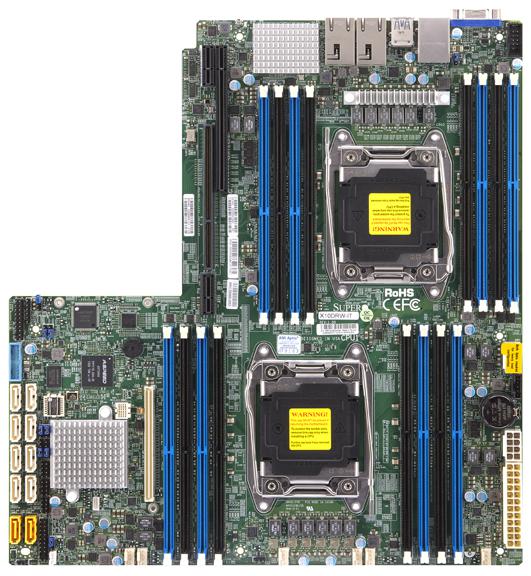

X10DRW-i

Proprietary WIO

12.3" x 13" (31.24cm x 33.02cm)

Intel? Xeon? processor E5-2600 v3, Intel? Xeon? processor E5-2600 v4.

Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s

Up to 22 cores ? / Up to 55MB? cache

? BIOS version 2.0 or above is required

** Motherboard supports this maximum TDP. Please verify your system can thermally support.

Up to 1TB 3DS ECC RDIMM, DDR4-2400MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots

2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB

LRDIMM: 32GB, 64GB

3DS LRDIMM: 128GB

1.2V

Corrects single-bit errors

Intel? C612

Intel? C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

SATA3 (6Gbps); RAID 0, 1, 5, 10

SATA3 (6Gbps); RAID 0, 1, 5, 10

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2400 BMC

Dual LAN with Intel? i350 Gigabit Ethernet Controller
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Aspeed AST2400 BMC

10 SATA3 (6Gbps) port

2 RJ45 Gigabit Ethernet LAN ports

1 RJ45 Dedicated IPMI LAN port

6 USB 3.0 ports (4 rear + 2 headers)

1 VGA port

1 COM Port (1 header)

1 TPM Header
